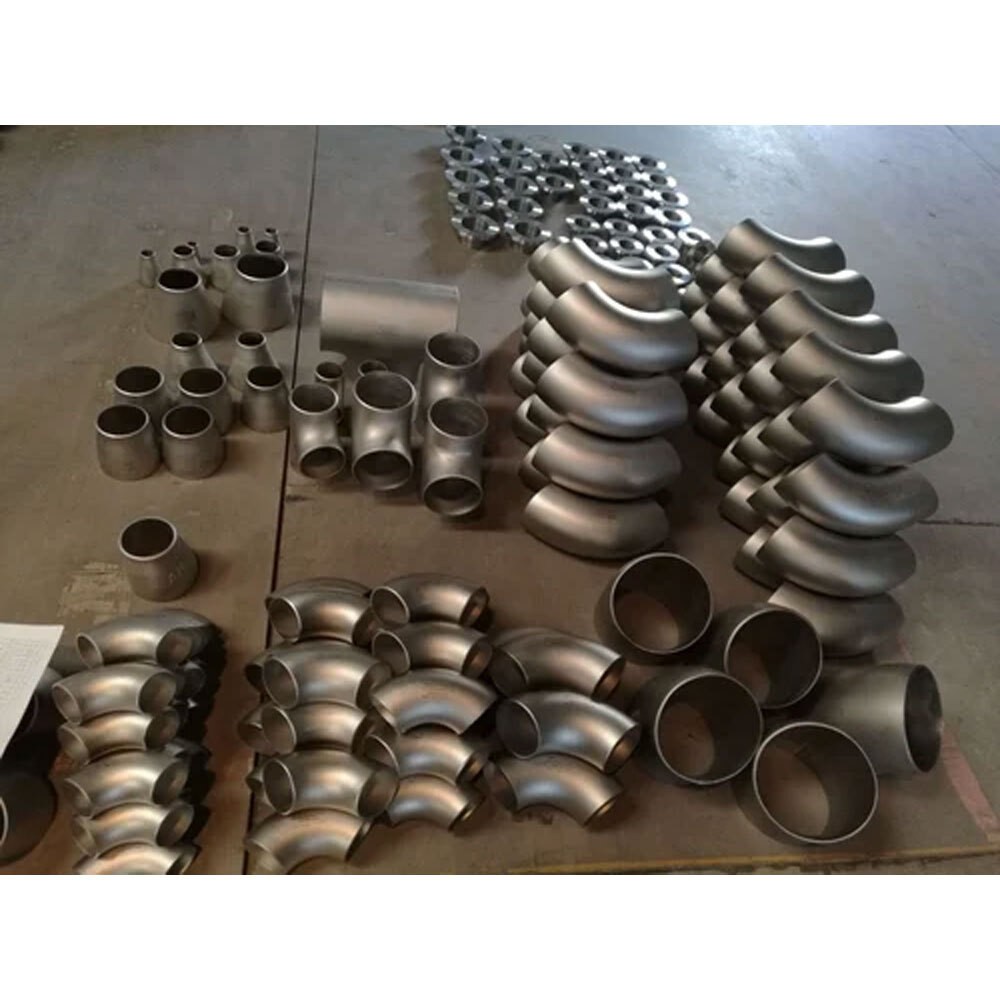

Titanium Fittings

Name: Titanium Fittings
Brand: ROMEX TUBES AND FITTINGS
Price: 2500 INR
Availability: InStock

Price 2500 INR/ Kilograms

Get a Price/Quote

MOQ : 5 Kilograms

Titanium Fittings Specification

Hardness
Brinell Hardness 70 HB (for Grade 2), 36 HRC (for Grade 5)

Thickness
Varies as per fitting type, typically 1.0 mm to 20 mm

Tensile Strength
Grade 2: 344 MPa (min), Grade 5: 895 MPa (min)

Thermal Conductivity
15.6 W/mK (at room temperature)

Product Type
Titanium Fittings

Types of Alloy
Commercially Pure (CP), Titanium Alloys like Grade 2, Grade 5 (Ti-6Al-4V)

Material
Titanium

Shape
Elbows, Tees, Reducers, Couplings, Caps, Stub Ends

Strength
High strength-to-weight ratio

Resistance
Excellent resistance to corrosion and high temperatures

Grade
Grade 2, Grade 5, Grade 7, or custom grades as required

Melting Point
1668C (3034F)

Density
4.51 Gram per cubic centimeter(g/cm3)

Chemical Composition
Primarily Titanium (Ti), with small amounts of elements such as Al, V, Fe, O, N, C, and H depending on the grade

Color
Silver-gray metallic

Standards
ASTM B363, ASME SB363, ASTM B861

End Connection
Buttweld, Socket Weld, Threaded

Weldability
Excellent for most grades

Form
Seamless or welded as required

Dimensional Accuracy
+/- 0.5 mm typical

Wall Thickness Range
Sch 5s, Sch 10s, Sch 40s, Sch 80s, or custom

Surface Protection
Optional passivation available

Weight
Lightweight compared to steel

Applications
Aerospace, Petrochemical, Marine, Chemical Processing, Medical

Pressure Ratings
Varies per fitting, up to 6000 PSI

Non-Magnetic
Yes

Operating Temperature Range
-253C to 400C

Finish
Pickled, Annealed, Polished

Titanium Fittings Trade Information

Minimum Order Quantity
5 Kilograms

Supply Ability
1000 Kilograms Per Month

Delivery Time
3 Days

Titanium Fittings About

Discover an elite masterpiece of engineering with our potent Titanium Fittings, meticulously crafted to ASTM B363 and ASME SB363 standards. Invincible in durability, these fittings showcase high strength-to-weight ratios and non-magnetic properties, making them the premier offer for demanding applications in aerospace, marine, petrochemical, chemical, and medical sectors. Available in seamless or welded forms, with an array of connections and finishes-including pickled, annealed, and polished-they ensure dimensional accuracy, excellent weldability, and resistance to corrosion and high temperatures. Benefit from markdown pricing and custom solutions that truly elevate your project needs.

Surface Applications & User Segments

Titanium Fittings are engineered for seamless integration across surfaces exposed to corrosive, high-pressure, or extreme thermal environments. Frequently utilized by elite professionals in aerospace, marine, petrochemical, chemical processing, and medical industries, these fittings excel on installation surfaces such as structural frameworks, piping systems, and laboratory apparatus. Their versatility and robust protection ensure long-lasting performance wherever superior reliability and strength are demanded.

Certifications, Sampling, and Payments

We ship titanium fittings certified to globally recognized standards like ASTM B363 and ASME SB363, ensuring each order meets stringent quality benchmarks. Samples are available upon request under our transparent sampling policy, allowing for pre-approval before dispatching main quantities. Payment terms are designed for flexibility, paving the way for seamless transactions and timely order completion. Experience hassle-free service from inquiry to door-your standards, our commitment.

FAQ's of Titanium Fittings:

Q: How are titanium fittings tested for quality standards?

A: Titanium fittings adhere to ASTM and ASME standards, undergoing rigorous dimensional, strength, and non-destructive testing to ensure elite performance and compliance.

Q: What is the process for ordering custom wall thickness or alloy grades?

A: Customers can specify required thicknesses, grades, and connection types during inquiry; our support team assists throughout the process to dispatch invincible, tailor-made solutions.

Q: Where can titanium fittings be effectively used?

A: These fittings are commonly used on surfaces in aerospace, marine, petrochemical, medical, and chemical processing industries due to their unmatched resistance and lightweight properties.

Q: What benefits do titanium fittings offer over traditional steel?

A: Titanium fittings provide superior strength-to-weight ratios, exceptional corrosion resistance, and maintain performance at extreme temperatures-attributes that make them a potent offer over conventional steel.

Q: When can I expect shipment and order completion after payment?

A: Orders are processed promptly, with sample dispatching available for approval. Standard lead times depend on customization level, ensuring your fittings ship promptly upon order completion.
