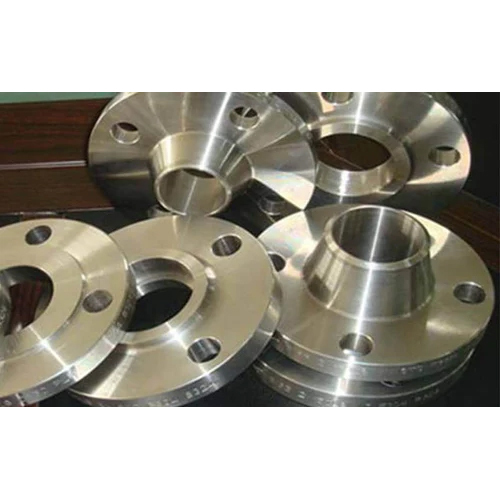

Monel Forged Flanges

Name: Monel Forged Flanges
Brand: ROMEX TUBES AND FITTINGS
Price: 2500 INR
Availability: InStock

Price 2500 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

Monel Forged Flanges Specification

Product Form
Forged

Coating Type
Uncoated, natural alloy finish

Size
ANSI/ASME B16.5, DIN, JIS, custom sizes

Diameter
1/2 inch to 48 inch (DN15 to DN1200)

Recyclable
Yes

Corrosion Resistant
Excellent

Tensile Strength
Monel 400: 550 MPa (min); Monel K500: up to 960 MPa

Hardness
140-200 HB (Monel 400); up to 300 HB (Monel K500)

Heat Resistance
Yes

Material Composition %
Nickel 63%, Copper 28-34%

Product Name
Monel Forged Flanges

Steel Type
Non-ferrous Nickel Alloy (Monel)

Steel Product Type
Forged Flange

Grade
Monel 400, Monel K500

Thickness
Customized as per specifications and flange rating

Shape
Round

Steel Standard
ASTM B564, ASME SB564

Surface
Smooth machined finish

Composition
Ni (63%), Cu (28-34%), with Fe, Mn, Si, C, S as trace elements

Application
Suitable for piping systems, offshore & marine engineering, chemical processing, and desalination plants

Dimension (L*W*H)
Standard and custom sizes available; complies with ASME/ASTM flange standards

Weight
Varies as per size and class; consult datasheet

Color
Silver/Grey metallic

Material Grade
Monel 400/ K500

Finish Type
Smooth, rust-resistant finish

Usage
Flanged joints in aggressive environments

Working Temperature Range
-29C to +482C

Types Available
Weld Neck, Slip-on, Blind, Socket Weld, Threaded, Lap Joint, Long Weld Neck

Machinability
Good, can be machined and welded using conventional techniques

Packaging
Wooden cases, pallet, customized packing

Testing Standards
Ultrasonic, radiography, hydrostatic and destructive/nondestructive tests as per customer requirement

Pressure Rating
Class 150 to 2500

Monel Forged Flanges Trade Information

Minimum Order Quantity
10 Pieces

Supply Ability
500 Pieces Per Month

Delivery Time
3 Days

Monel Forged Flanges About

Experience world-class durability with our Monel Forged Flanges, now available for reserve and sale. Manufactured using superb Monel 400 and K500 non-ferrous alloys, these flanges withstand redoubtable pressure ratings from Class 150 up to 2500. Offering excellent machinability, corrosion and heat resistance, and a smooth, rust-resistant metallic finish, they're ideal for aggressive environments like offshore, chemical, and marine systems. Choose from weld neck, slip-on, blind, socket weld, threaded, lap joint, and long weld neck types - with dimensions tailored to your needs. Try now and benefit from customized packaging and meticulous testing.

Robust Performance in Demanding Applications

Monel Forged Flanges are engineered for both specific and general uses including piping systems, chemical processing, marine, and desalination plants. Their primary advantages stem from superb tensile strength, redoubtable corrosion resistance, and reliable performance under challenging temperatures. Extra features include a wide working temperature range (-29C to +482C), compliance with stringent ASME/ASTM standards, and customizable dimensions, making them unbeatable for projects requiring world-class resilience and versatility.

Swift Delivery, Samples Available, and Flexible Supply

We ensure prompt delivery of Monel Forged Flanges in sturdy wooden cases, pallets, or custom packaging, as per your proposal amount and charge requirements. Samples are available upon request-try now before placing a bulk order. Our extensive supply ability means large-scale orders can be fulfilled efficiently and reliably to meet even the most demanding project timelines.

FAQ's of Monel Forged Flanges:

Q: How do Monel Forged Flanges handle corrosive environments?

A: Monel Forged Flanges offer excellent corrosion resistance due to their high nickel and copper content, making them ideal for aggressive and marine environments where long-term durability and performance are essential.

Q: What flange types and pressure ratings are available for purchase?

A: You can choose from weld neck, slip-on, blind, socket weld, threaded, lap joint, and long weld neck types, with pressure ratings ranging from Class 150 to Class 2500, complying with international standards.

Q: When should I use Monel 400 versus Monel K500 grade flanges?

A: Monel 400 is excellent for general corrosion resistance and moderate strength needs, while Monel K500 is preferred when higher strength and hardness are required, such as in harsher chemical processing or offshore applications.

Q: Where can Monel Forged Flanges be shipped from and are custom sizes available?

A: These forged flanges are supplied directly from India and can be custom-manufactured in various sizes, thicknesses, and dimensions to meet your project's exact standards.

Q: What is the process for quality testing and packaging of these flanges?

A: Each flange undergoes ultrasonic, radiography, hydrostatic, and destructive/nondestructive tests according to customer requirements, then packaged in secure wooden cases, pallets, or customized solutions to ensure safe delivery.

Q: What benefit does the recyclability of Monel Forged Flanges offer?

A: The recyclable nature of Monel flanges supports sustainable practices, allowing for reduced environmental impact, cost savings in the long run, and contributing to green engineering initiatives.
